Hydraulic Toplink
Light Type With Ball
Stock Number
CTP320000
Add To Basket
Product varieties

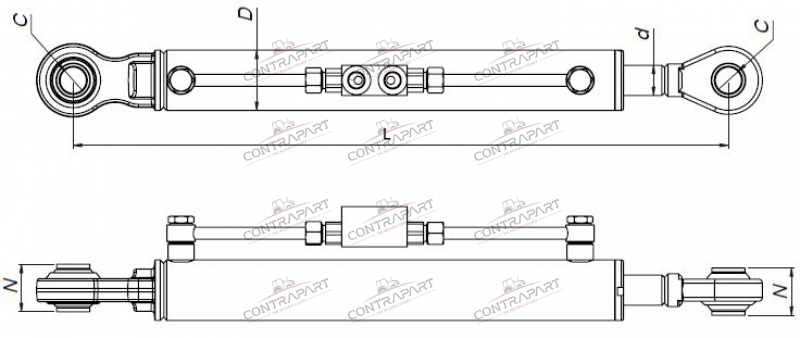

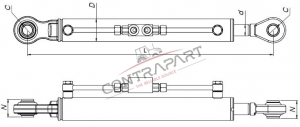

Contrapart NoClosed Length (mm)Open Length (mm)Stroke (mm)Tube Dia (D)Rod Dia (d)C (mm)N (mm)Impulse Pull Force Transaction
CTP320000500707207Ø50 x Ø60Ø30Ø26514 / 2,5
CTP320001550807257Ø50 x Ø60Ø30Ø26514 / 2,5
CTP320002600907307Ø50 x Ø60Ø30Ø26514 / 2,5
CTP3200036501007357Ø50 x Ø60Ø30Ø26514 / 2,5
CTP3200047001107407Ø50 x Ø60Ø30Ø26514 / 2,5
